Intermittent PROFIBUS Fault Investigation
Investigation and rectification of a long-running intermittent PROFIBUS communications fault at a magnetite iron ore operation. The issue caused random device dropouts and phantom trips with limited alarm information, making it difficult for site teams to identify the root cause. The fault was isolated through structured diagnostics, network analysis and custom PLC diagnostic logic.
The plant was experiencing random communications dropouts and phantom trips on a PROFIBUS network. The events were intermittent, difficult to reproduce and did not generate clear alarms that identified the underlying cause. The site team had been unable to locate the issue for an extended period because the symptoms appeared randomly and the available diagnostics were not sufficient to show exactly where the fault originated. The investigation required a combination of industrial network analysis, process understanding, PLC diagnostics and practical site fault-finding.
- 01 Reviewed the PROFIBUS network symptoms and operating history
- 02 Investigated random device dropouts and phantom trip behaviour

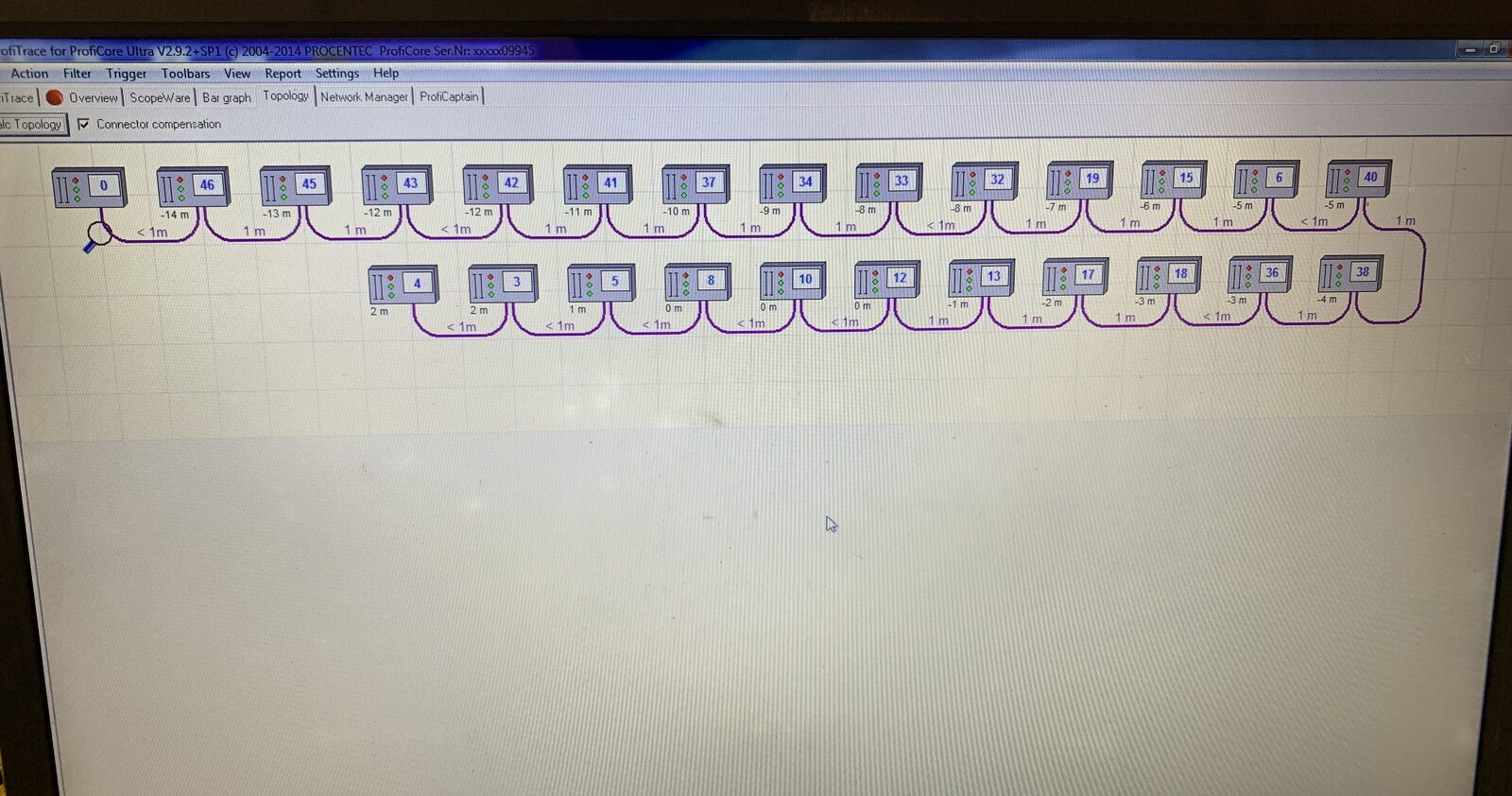

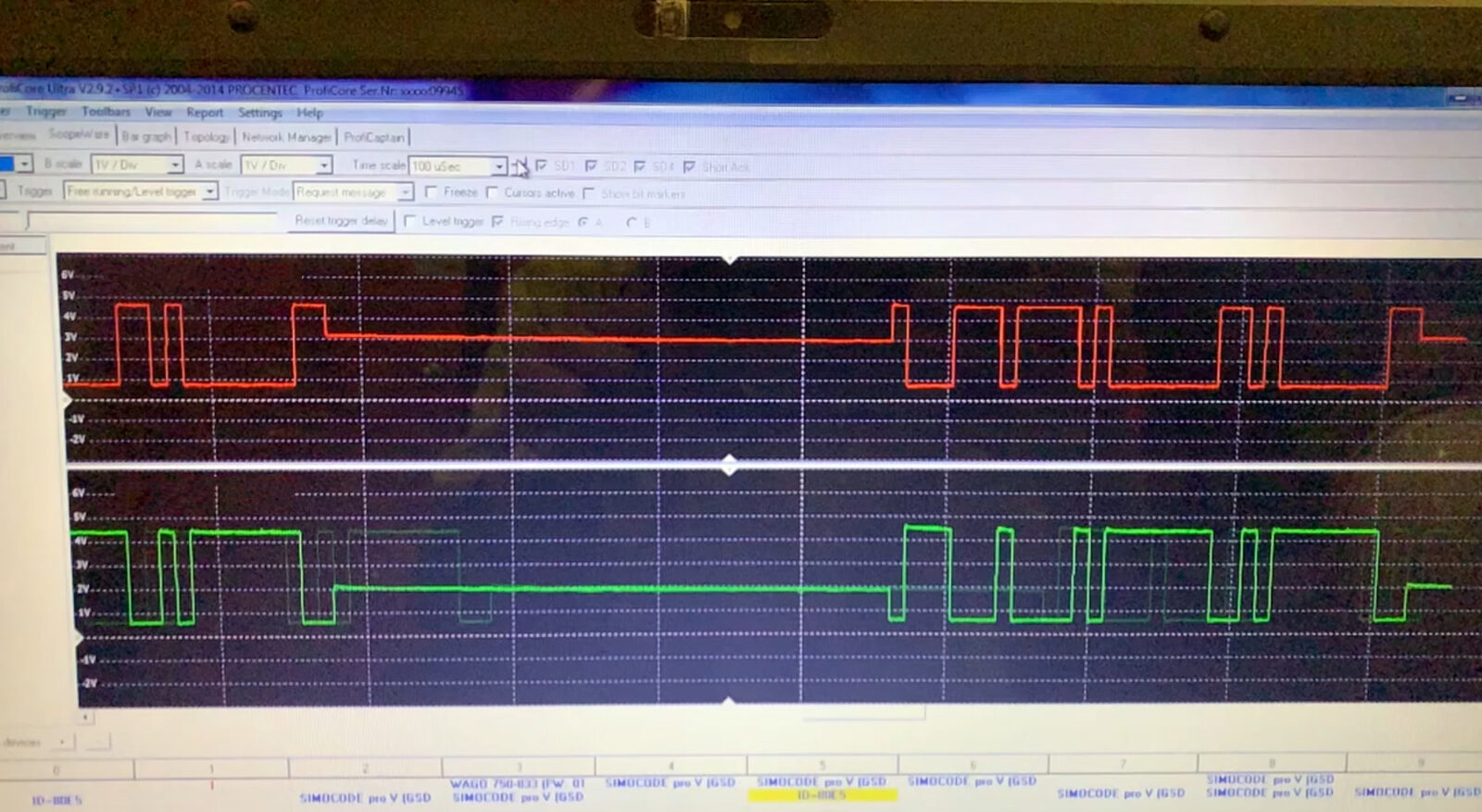

- 03 Used dedicated PROFIBUS diagnostic tooling to analyse network behaviour
- 04 Developed custom PLC diagnostic logic to capture fault patterns
- 05 Improved visibility of communication dropouts and affected device behaviour
- 06 Correlated field symptoms with PLC diagnostic information
- 07 Assisted site personnel with fault isolation and verification
- 08 Identified the underlying communications fault mechanism
- 09 Supported rectification and validation of the fix
- 10 Improved the site’s ability to diagnose future communications issues
The investigation combined external network diagnostics with PLC-based diagnostic logic. Dedicated PROFIBUS analysis was used to inspect communications behaviour at the network level. Custom PLC diagnostic logic was then used to capture plant-specific symptoms, dropout patterns and affected device states during normal operation. This helped convert a random, difficult-to-prove issue into a traceable fault pattern that could be investigated and rectified.
- 01 Identified the root cause of an intermittent communications fault
- 02 Rectified random PROFIBUS dropouts and phantom trip behaviour
- 03 Improved plant reliability and operator confidence
- 04 Reduced repeated nuisance trips
- 05 Improved diagnostic visibility for field-network issues
- 06 Provided a clearer method for future communications troubleshooting
- 07 Resolved an issue that had remained open for an extended period
- 08 Reduced operational uncertainty around unexplained plant trips
